Selection Mask
With a mouseclick you get a describtion of the screen item.
The Selection mask is the entry point to JESG. This mask allows the required Group entries to be selected (e.g. all Group-IDs on the PVS X).
The attribute on which the list should be sorted can be entered in the "SORT OPTION" field. For example, the list can be sorted in ascending order by Group-IDs, or by PVS, or in descending Pubspace Limit order.
Additional selection criteria can be specified in the "USER OPTION" field. The options specified here will determine the layout of the list.
A file name can be specified in the "DOCUMENTATION" field, to which the selected list will be saved, as well as being displayed on screen.
The last field in the Selection mask can contain a Variable Action. Variable Actions allow the user to define a complex processing instruction which can then be executed for multiple entries.
The pubsets available locally will be displayed in the system line (25th line), with the Home pubset being displayed first.
With a mouseclick you get a describtion of the screen item.

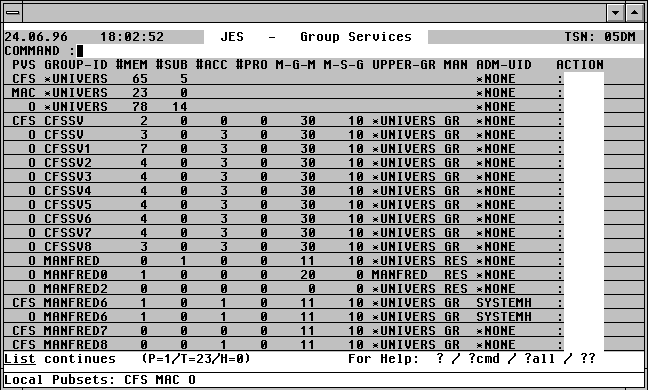

The results of the Selection will be displayed in this screen i.e. all those Group entries meeting the specified selection criteria.
The top of the mask contains the Command field. BS2000 and JESG-specific commands can be entered from here.
To the right of every Group entry there is an Action field. Action Codes, mnemonic abbreviations which perform some function on that particular Group entry, can be entered here.
By default, the Group list is sorted in ascending order on the Group description. A different sort order can be specified in the "SORT OPTION" field of the Selection mask.
The Group list can be displayed in different formats. The Group-specific standard format is described above. In addition to this list, there are Account-, Join- and SDF-Syntax-specific formats. The individual formats will be described in detail below.
Group-specific List: USER OPTION not specified or #ACC / #PRO
With a mouseclick you get a describtion of the screen item.

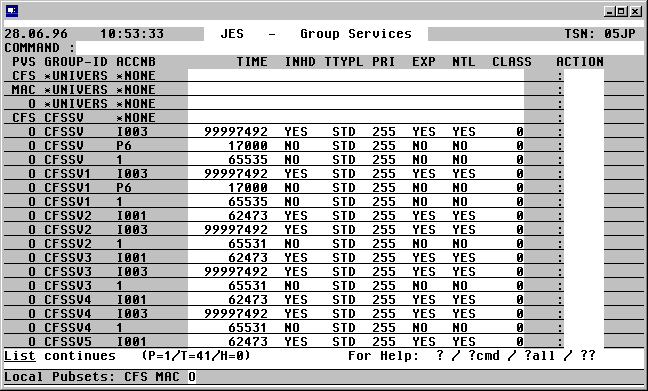

Account-specific Group List: USER OPTION : ACCNB
With a mouseclick you get a describtion of the screen item.

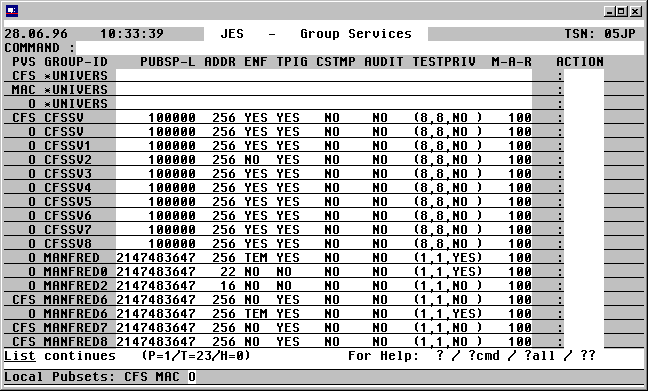

Join-specific Group List: USER OPTION : JOIN
With a mouseclick you get a describtion of the screen item.
SDF-specific Group List: USER OPTION : SDF/PRO
With a mouseclick you get a describtion of the screen item.
With a mouseclick you get a describtion of the screen item.
Various Group- and Join-specific attributes relating to a Group will be displayed. Join-specific attributes are those which are not linked to an Account number, a Profile-Id, Subgroups or Group members.
In the Modify Group screen, all the characteristics which may be modified by the system administrator will be highlighted, and can be amended as required.
Display/Modify the Account-specific Characteristics of a Group
With a mouseclick you get a describtion of the screen item.
The Account number-specific attributes relating to the Group will be displayed in this screen. A maximum of 15 Account numbers per Group can be displayed. If a Group has more than 15 Account numbers associated with it, these can only be displayed by means of the ACCNB User Option in the Selection mask.
In the Modify Account screen, all the characteristics which may be modified by the system administrator will be highlighted, and can be amended as required.
